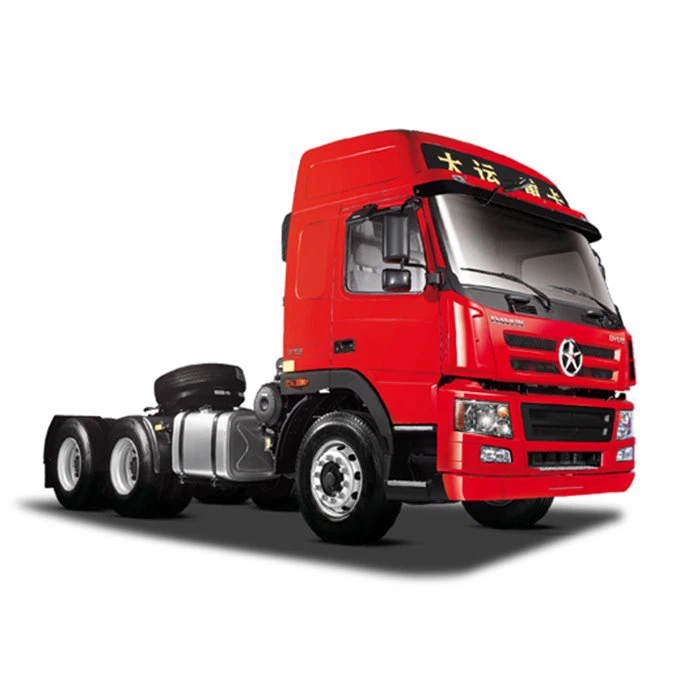

Dayun N8C 6*4 Tractor Truck

Name: Dayun N8C 6*4 Tractor Truck
Brand: Dayu
SKU: 163396908

The new N8E series 6 × 4 tractor positioning economic heavy truck products, covering 350 to 430 horsepower segment, mainly for daily industrial products, express delivery, cold chain, light throw transport industry in the long-distance logistics and transport.

Send Inquiry

Add To Inquiry

Description

Product Specification

Length x width x height	6855×2490×3515 mm
Wheelbase	3300+1350mm/3800+1350 mm
Front/ Rear wheel distance	2030/1860/1860mm
Front/ Rear suspension	1430/875 mm
Total weight/Gross combination weight	70000 kg
Curb weight / Gross vehicle weight	9000 kg
Seat	2
Max.speed	≥90km/h
Max.gradient	≥25%
Mini.turning radius	≤18 m
Mini.ground clearance	270 mm
Approaching/leaving angle	24°/50°
Engine Specification
Model	Weichai，Cummins
Rate power	350hp-460hp
Emission standard	Euro II,III,IV,V,VI
Displacement	9.726 Litre
Chassis Specification
Gearbox	FAST12JSD
Clutch	Pull-type diaphragm spring
Steer/Transmission ration	Hydraulic power steering/ 23:1
Front Solo axle	5.5 Ton 153 axle/ MAN axle
Rear Tandem axle	13 Ton 543 axle/Benz casting axles
Front/Rear suspension	Spring leaf, 9pcs
Spring leaf, 12pcs
Brake system	Compressed air drum brake
Driving axle	2
Driving model	6x4
Tyre	12R22.5 18PR,11.00R20 18PR,12.00R20 16PR,315/80R22.5 18PR/315/80R22.5 16PR
Fuel tank	350 Litre
Battery	24V,180Amp/h
Optional accessary	ABS.GPS,Rearview radar, rim cover, Key start
Cab Specification
Cab	High top/Flat roof
Air conditioner	Cool/Heat
Sleep	1 bed
Body colour	optional
Others	side air deflector, central control station,power mirror. Adjust steering wheel, four-direction, roof hatch, Desert air filter, Cabin independent heating system, Fuel pipe electric heating, Oil filter electric heating, Oil-water separator heating.
