Remarks:
Brand Green Wheel
Dimension（mm）" 8348mm*2280mm*2880/2980mm（AC）
Fuel Type" Electricity
Factory maximum total mass (kg)" "9400（front 3400/rear 6000） 9400 (front 3400 / rear6000)
Max. Speed（km/h）"100"
Mileage 2000-10000
Rate passenger capacity(Person/Seat)" 31
Standard number of seat" 31
Primary Drive Motor" DK1647
Peak power of primary drive motor" 100kw
Gearbox" 4 Auto Transmission"
Drive battary capacity" 150Ah
mileage range on a single charge" 265-310km
Battery type " Lithium iron phosphate
Battery brand" Gotion High-Tech"
Battery Assembly Specification" 531.2V/168Ah
Battery Production Date" 2016.10.13
Tire235/75R17.5
Seat form Surface fiber cloth, back adjustable seat
air conditioning system Overhead integrated cooling and heating pure electric air conditioner
Auxiliary configuration Dash cam, electric horn, electronic clock, pure electric can instrument, 1 safety skylight, 2 safety hammers, 2 fire extinguishers, passenger door guardrail
Engine / motor parameters
Electric machinery TZ365XS-YBM303,TZ330XSGW1
Motor power 100,120kW
Motor brand Nanjing yuebo Power System Co., Ltd., Guangdong Gaoxin Electric Drive System Technology Co., Ltd
Maximum torque 300mm
Chassis parameters / configuration
Chassis Model Load bearing body
Front suspension rear suspension 1200/2048mm
suspension system Less leaf spring 3 / 4
transmission case Four speed transmission
Number of axes two
wheelbase 5100mm
Axle load 3400/6000kg
Front track 1857mm
Rear track 1680mm
Approach departure angle 15/10° tyre
Number of tires six
Specifications 235/75R17. five
 |  |
 |  |
 |  |
1. The car is equipped with a driving recorder with GPS/Beidou dual-mode satellite positioning function,
2. The car can be equipped with an optional overhead air conditioner, and the height when the overhead air conditioner is selected is 2980mm; when the glass safety sunroof and independent ventilation fan are selected, the height is 2880mm;
3. The speed limit of the vehicle controller is 100km/h;
4. Install ABS, ABS model: ABS-E 4S/4M, manufacturer: WABCO or ABS model: CM4XL-4S/4M; manufacturer: Guangzhou Ruili Kemi Automotive Electronics Co., Ltd.;
5. The product is in the technical stage of development;
6. Types of energy storage devices/manufacturers: LiFePO4 battery/Huizhou Yiwei Lithium Energy Co., Ltd.;
7. The car can be equipped with high-mounted brake lights, rear wipers, reversing monitors, side windows of different forms, and rear spoilers;
8. The driving motor power is the peak power;
9. The vehicle is equipped with traveling data recorder with GPS / BeiDou dual-mode satellite positioning function.
10. The car can be equipped with an overhead air conditioner. When the overhead air conditioner is selected, the height is 2980mm; When glass safety skylight and independent ventilator are optional, the height is 2880mm;
11. The speed limit of the whole vehicle controller is 100km / h;
12. Install ABS, ABS model: abs-e4s / 4m, manufacturer: WABCO or ABS model: cm4xl-4s / 4m, manufacturer: Guangzhou Ruili Kemi Automotive Electronics Co., Ltd;
13. The product is in the technical stage of development;
14. Type of energy storage device / manufacturer: lithium iron phosphate battery / Huizhou Yiwei lithium energy Co., Ltd;
15. The car can be sold nationwide;
16. The vehicle can be equipped with high-level brake light, rear wiper, reversing monitor, different forms of side windows and rear tail;
17. The car can be equipped with slow speed.

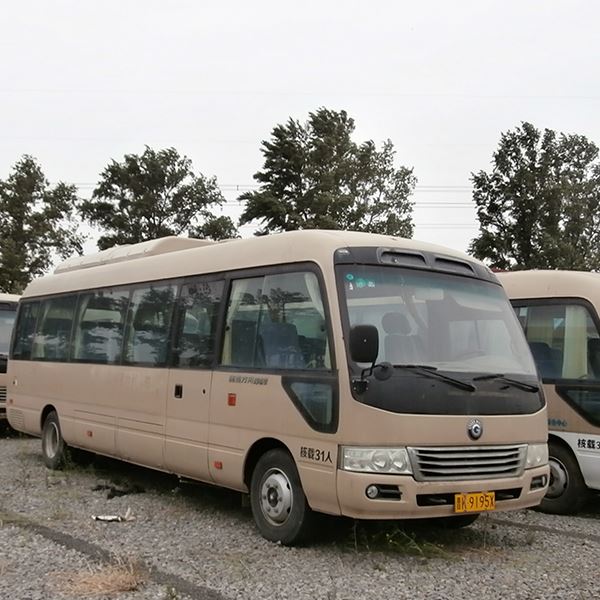

Detailed introduction of rq6830yevh14 passenger car of land ark (pure electric 24-33 seats)
Excellent body mode leads the cutting-edge body technology
Comprehensively improve the handling performance, safety performance and system stability
 |  |
 |  |
